Side Pulling an Overhead Crane: Why It Happens and Why It Matters

An overhead crane is designed to lift with the hoist line vertical. That sounds basic, but it is one of the easiest rules to lose sight of when a load is awkward, a work area is tight, or the hook is not directly above the pick point.

The result is called a side pull: part of the force applied by the hoist is horizontal instead of vertical. It may look harmless from the floor, especially when the load only moves a short distance. In reality, the force can travel into components that were not meant to carry it in that direction – the rope, hook block, trolley, bridge, runway and load-handling equipment.

In real workshops, the pattern is familiar. A load starts slightly out of position, someone tries to bring it into line while it is suspended, and the crane begins to chase the load rather than lift it cleanly. The better answer is rarely to keep correcting the lift in motion. It is to stop, understand why the line is not vertical, and change the setup before the next attempt.

What is a side pull on an overhead crane?

A side pull occurs when the hook is not directly over the load’s effective centre of gravity or lifting point, and the hoist begins to lift with the rope at an angle. The horizontal component of that force can pull the trolley or bridge toward the load, move the load unexpectedly, or introduce side loading into the lifting system.

In the United States, OSHA defines a side pull as the portion of hoist pull acting horizontally when the hoist lines are not operated vertically. OSHA also states that cranes should not be used for side pulls unless a responsible person has specifically authorized the operation after determining that crane stability is not endangered and the equipment will not be overstressed.

That is a useful distinction for a workshop: an intentional, engineered operation is not the same thing as a normal lift that has drifted out of position.

Why side pulling happens in real workshops

Most side pulls begin with a simple mismatch between the hook position and the load. Common causes include:

• The bridge or trolley is stopped before the hook is directly over the lifting point.
• An off-centre component is rigged from a point that does not reflect its true centre of gravity.
• A long load is supported from one point when it needs two controlled pick points or a suitable lifting beam.
• The load is landed against an obstruction, then lifted before the slings and hook line are free and vertical.
• A production team is trying to rotate, upend or transfer a component with a standard single-hook arrangement.
• The layout leaves little travel clearance, so an operator is tempted to pull a load into the next position instead of travelling the crane first.

None of these are unusual. They are exactly the sort of conditions that should be discussed when a crane is selected for a new workshop or when a process changes after the crane is installed.

What can a side pull stress?

The risk is not limited to the load moving sideways. Depending on the angle, load, travel condition and equipment design, side pulling may add unwanted forces to:

• Hoist rope, sheaves and drum winding
• Hook block, hook latch and lower-block components
• Trolley wheels, side guides and travel drives
• Bridge wheels and runway alignment
• The load’s slings, lifting lugs or below-the-hook device

It can also make load control worse. A load that starts with a horizontal pull may swing as soon as it clears the floor, while a sudden transfer of force can make the travel system respond in a way the operator did not expect.

For operators, the visible warning signs are usually straightforward: the hook line is angled, the load does not hang naturally under the hook, the trolley or bridge begins to move without a deliberate travel command, or the load remains pinned against something as hoisting starts. Any of those signs deserves a pause.

What to check before the next lift

The practical goal is to restore a vertical, balanced pick before lifting clear of the floor. A qualified person should confirm the load weight, the pick points, the rigging arrangement and the expected centre of gravity. The crane should then be positioned so that the hook is over the intended lifting point before tension is applied.

For a repeated manufacturing task, it is worth looking beyond the single lift. Ask whether the process needs a different solution:

• A lifting beam or spreader that keeps the load stable.

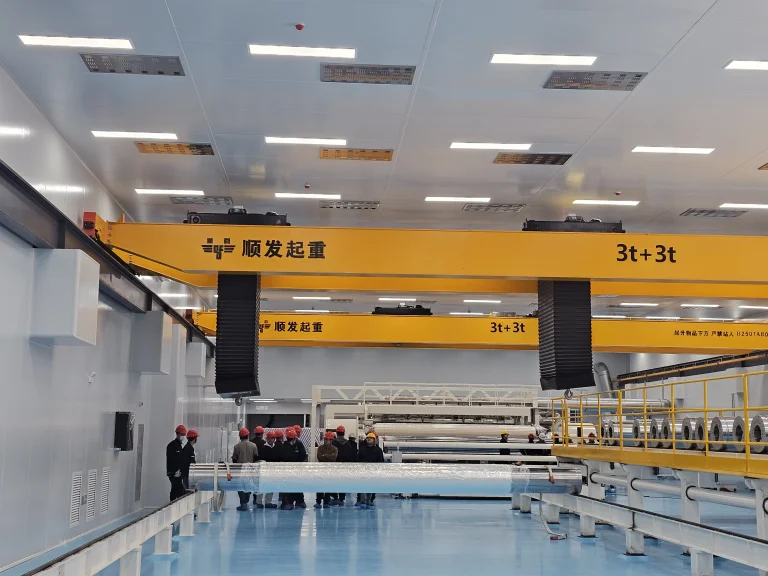

• Two controlled hoists on one bridge for long or eccentric parts.
• A turning device or custom fixture for parts that must be rotated during the process.
• A revised runway, crane span or hook approach for a constrained work cell.

Those decisions are usually cheaper and safer when they are made during equipment planning rather than after a series of difficult lifts on the shop floor.

A better question for crane buyers

Instead of asking only, "What capacity crane do we need?", ask, "How will the load hang at every point in its journey?"

That question brings out the details that matter: the actual centre of gravity, the number of pick points, the need to turn a load, clearance around machines, and whether the lift will be occasional or repeated many times per shift. They all influence the hoist arrangement, crane geometry and control system.

For a broader look at choosing a system, see SFCRANE’s overhead crane range and the guide on reducing overhead crane load sway. When frequent positioning is part of the job, the crane’s duty cycle and control arrangement deserve the same attention as rated capacity.

FAQ

Is a small side pull acceptable on an overhead crane?

Do not treat a small angle as automatically acceptable. Site rules, the crane manufacturer, the lifting plan and applicable regulations determine whether a planned exception is permitted. A routine production lift should normally begin with the hook line vertical.

Can a side pull damage an overhead crane?

It can introduce forces into the rope, hook block, trolley, bridge and runway that are different from a normal vertical lift. Repeated side pulling may also point to a process or layout problem that should be addressed.

Does anti-sway control make side pulling safe?

No. Anti-sway functions can help control pendulum motion during intended travel, but they do not turn an angled lift into a properly planned vertical pick.

Who should approve an unusual lift?

A qualified responsible person should review the load, equipment, rigging and planned movements in line with the site’s procedures and local requirements.
