Single Girder Overhead Crane for a Small Workshop: What to Check First
Small workshop crane visuals
The photos below are included to make the article easier to evaluate visually. They show equipment structure, workshop context and practical details that are often difficult to understand from text alone.
Workshop video reference
What these visuals help confirm

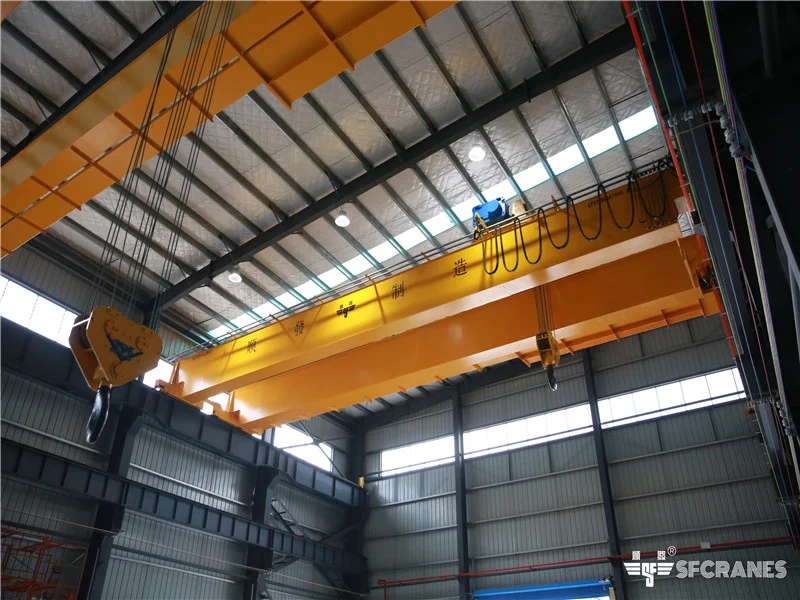

Compact footprint
Shows the real project condition behind the selection point.
Clear hook path
Helps buyers connect the article with workshop planning.
Runway support
Makes the quote discussion more practical and specific.
Daily lifting rhythm
Supports trust with visible equipment and process context.

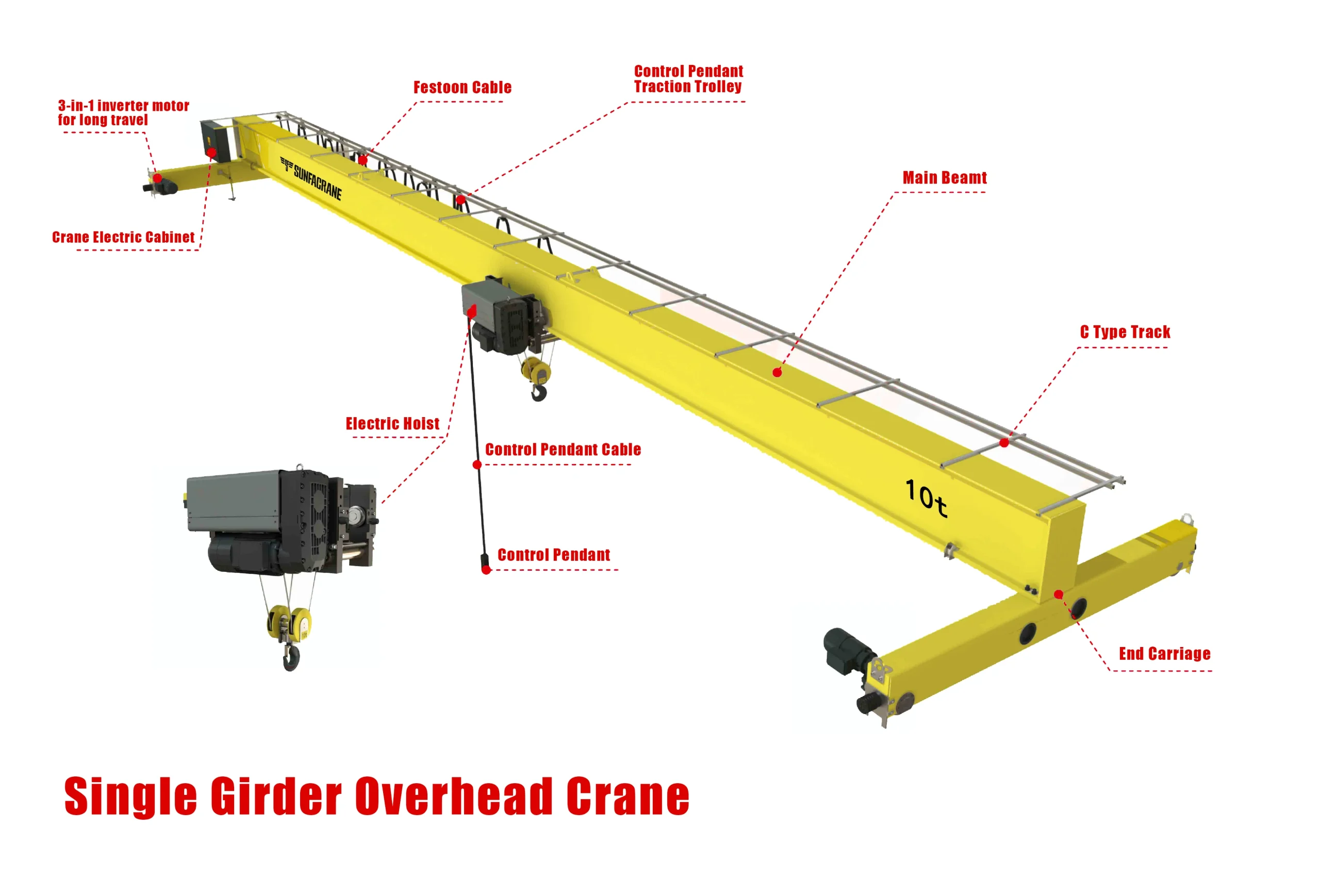

Small workshops usually do not have spare space to waste. A crane that is too heavy, too tall or too complicated can make the building harder to use instead of easier. That is why a single girder overhead crane is often the first option worth studying.
The design looks simple, but the details still matter. A practical choice depends on the building span, hook height, load shape, operator path and how often the crane will work during a normal day.
Start with the real lifting path
Do not begin with capacity alone. Walk from the place where material arrives to the place where it is used. Mark the pickup point, drop-off point and any machines, shelves or walkways between them.
A small workshop often has forklifts, work benches and storage racks competing for the same floor. The crane should reduce that congestion, not create another awkward route.
Check headroom before choosing the hoist
Single girder cranes can be very efficient, but the hoist arrangement affects how much hook height you keep. A low building may need a compact hoist or a different end carriage arrangement.
If the tallest load already comes close to the roof beams, measure twice. A small loss of hook travel may become a daily problem.
Look carefully at the runway
Many small workshops want to reuse existing columns or beams. That can work, but the runway must be checked for rail level, deflection, wheel load and end-stop position.
A light crane still needs a sound structure. If the runway is uneven, the crane may wear wheels and rails faster than expected.
Keep controls simple but safe
Pendant control is common in smaller bays, especially when the operator can walk with the load. Radio remote control is useful if the operator needs to stand clear of long or swinging material.
The safest choice is the one that gives the operator a clear view and a natural working position.
Match the crane to daily rhythm
A repair shop that lifts occasionally does not need the same duty class as a busy production cell. Ask how many lifts happen per hour, how far the bridge travels and whether positioning needs to be slow and exact.
This information helps decide hoist speed, travel speed and motor selection without overbuying.
A single girder overhead crane is a strong choice when the load is moderate, the span is reasonable and the workshop needs clean floor space. It should feel easy for operators, not oversized for the building.
Before ordering, measure the bay, inspect the runway and describe the normal work honestly. Those small checks usually lead to a simpler and more reliable crane.
Additional buyer notes before requesting a quote
A practical single girder overhead crane for small workshop decision should start from the real work area, not from a model name alone. The load path, available headroom, nearby equipment, operator position and maintenance access all shape whether the crane will feel efficient after installation.
Before publishing this guide, the content was expanded to make the article more useful for buyers who are comparing options and preparing project information. The points below are the details that often decide whether a quotation is accurate or only a rough guess.
Design details to review
- Measure the real lifting path between pickup and drop-off points.
- Check usable hook height and side approach near machines and benches.
- Decide whether the existing building can support runways or needs a freestanding structure.
Information to prepare
If you want a supplier to respond with a useful proposal, prepare the following details before asking for price. Even simple photos and marked-up drawings can reduce back-and-forth.
- rated load and largest part size
- clear span and bay length
- required lifting height and lowest obstruction
- photos of columns and roof structure
Common mistakes to avoid
- buying the smallest crane without future load checks
- ignoring side approach
- installing before runway and power checks
Related SUNFACRANE pages
For a broader comparison, also review single girder overhead crane, light crane systems, contact SUNFACRANE. These internal references help connect the article with the correct product pages instead of leaving it as a thin standalone post.
FAQ
Is this crane type suitable for every workshop?
No. The right choice depends on load weight, span, lifting height, duty cycle, building structure and how the material moves through the site.
What should be checked before a final quotation?
Capacity, load size, hook height, runway or support condition, operating frequency, control method and safety requirements should all be confirmed before price is finalized.
Can SUNFACRANE customize the design?
Yes. When the standard arrangement does not fit the building or process, SUNFACRANE can review the project conditions and suggest a customized crane solution.
Final note
A crane article should help buyers make a clearer decision. For that reason, this post focuses on practical site checks, project information and selection risks rather than repeating generic product claims.
A practical project review path
When reviewing single girder overhead crane, it helps to slow the decision down into a few visible steps. In a small workshop trying to gain lifting coverage without wasting space, the first proposal is often based on capacity and span, but the final design should also reflect the workflow, the building and the people who operate the equipment.
- Confirm the job: define the normal load, the heaviest load, the load size and the lifting accessories used with it.
- Map the movement: mark the pickup points, drop-off points, travel route, blind spots and any place where the load must slow down.
- Check the structure: review runway beams, floor condition, roof steel, rail foundation or supporting columns before the crane layout is frozen.
- Review operation: decide whether pendant, cabin, radio remote control or a mixed method gives the operator the safest view.
- Plan service access: make sure brakes, hoists, drives, wheels, ropes, electrical panels and safety devices can be inspected without awkward shutdowns.
How to compare supplier proposals
For single girder overhead crane, comparing only the headline price can hide important differences. One offer may include better duty class, safer controls, stronger drives or more complete installation support, while another may be cheaper because it leaves those items unclear.
A practical comparison should look at capacity, duty class, motor and brake selection, hook approach, wheel load, control method, safety devices, documentation, spare parts and after-sales support. Side approach, future load growth and support structure should be checked early, so these details should be visible in the proposal instead of discussed only after the order is placed.
Questions to ask internally
- Which loads are lifted every day, and which loads happen only occasionally?
- Where does the operator stand during the most difficult lift?
- What equipment, racks, doors, pits or walkways could interfere with the crane path?
- Who will inspect and maintain the crane after installation?
- What future production change could make the current crane choice too small or too limited?
When custom engineering is worth discussing
Standard crane models work well when the building, load and route are straightforward. Custom engineering becomes more useful when the workshop has limited headroom, unusual load shapes, high duty cycles, special safety requirements, outdoor exposure or a process that cannot be served by a simple catalogue crane.
Sharing drawings, photos, videos and a short description of the lifting routine helps SUNFACRANE judge whether a standard solution is enough or whether a customized crane design would be more reliable in the long run.
